REINFORCE agent

Copyright 2023 The TF-Agents Authors.

Introduction

This example shows how to train a REINFORCE agent on the Cartpole environment using the TF-Agents library, similar to the DQN tutorial.

We will walk you through all the components in a Reinforcement Learning (RL) pipeline for training, evaluation and data collection.

Setup

If you haven't installed the following dependencies, run:

sudo apt-get update
sudo apt-get install -y xvfb ffmpeg freeglut3-dev
pip install 'imageio==2.4.0'
pip install pyvirtualdisplay
pip install tf-agents[reverb]
pip install pyglet xvfbwrapper
pip install tf-keras

import os
# Keep using keras-2 (tf-keras) rather than keras-3 (keras).
os.environ['TF_USE_LEGACY_KERAS'] = '1'

from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import base64
import imageio
import IPython
import matplotlib.pyplot as plt
import numpy as np
import PIL.Image
import pyvirtualdisplay
import reverb

import tensorflow as tf

from tf_agents.agents.reinforce import reinforce_agent
from tf_agents.drivers import py_driver
from tf_agents.environments import suite_gym
from tf_agents.environments import tf_py_environment
from tf_agents.networks import actor_distribution_network
from tf_agents.policies import py_tf_eager_policy
from tf_agents.replay_buffers import reverb_replay_buffer
from tf_agents.replay_buffers import reverb_utils
from tf_agents.specs import tensor_spec
from tf_agents.trajectories import trajectory
from tf_agents.utils import common

# Set up a virtual display for rendering OpenAI gym environments.
display = pyvirtualdisplay.Display(visible=0, size=(1400, 900)).start()

2023-12-22 14:05:03.363396: E external/local_xla/xla/stream_executor/cuda/cuda_dnn.cc:9261] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
2023-12-22 14:05:03.363443: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:607] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
2023-12-22 14:05:03.365008: E external/local_xla/xla/stream_executor/cuda/cuda_blas.cc:1515] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered

Hyperparameters

env_name = "CartPole-v0" # @param {type:"string"}
num_iterations = 250 # @param {type:"integer"}
collect_episodes_per_iteration = 2 # @param {type:"integer"}
replay_buffer_capacity = 2000 # @param {type:"integer"}

fc_layer_params = (100,)

learning_rate = 1e-3 # @param {type:"number"}
log_interval = 25 # @param {type:"integer"}
num_eval_episodes = 10 # @param {type:"integer"}
eval_interval = 50 # @param {type:"integer"}

Environment

Environments in RL represent the task or problem that we are trying to solve. Standard environments can be easily created in TF-Agents using suites. We have different suites for loading environments from sources such as the OpenAI Gym, Atari, DM Control, etc., given a string environment name.

Now let us load the CartPole environment from the OpenAI Gym suite.

env = suite_gym.load(env_name)

We can render this environment to see how it looks. A free-swinging pole is attached to a cart. The goal is to move the cart right or left in order to keep the pole pointing up.

env.reset()
PIL.Image.fromarray(env.render())

The time_step = environment.step(action) statement takes action in the environment. The TimeStep tuple returned contains the environment's next observation and reward for that action. The time_step_spec() and action_spec() methods in the environment return the specifications (types, shapes, bounds) of the time_step and action respectively.

print('Observation Spec:')
print(env.time_step_spec().observation)
print('Action Spec:')
print(env.action_spec())

Observation Spec:
BoundedArraySpec(shape=(4,), dtype=dtype('float32'), name='observation', minimum=[-4.8000002e+00 -3.4028235e+38 -4.1887903e-01 -3.4028235e+38], maximum=[4.8000002e+00 3.4028235e+38 4.1887903e-01 3.4028235e+38])
Action Spec:
BoundedArraySpec(shape=(), dtype=dtype('int64'), name='action', minimum=0, maximum=1)

So, we see that observation is an array of 4 floats: the position and velocity of the cart, and the angular position and velocity of the pole. Since only two actions are possible (move left or move right), the action_spec is a scalar where 0 means "move left" and 1 means "move right."

time_step = env.reset()
print('Time step:')
print(time_step)

action = np.array(1, dtype=np.int32)

next_time_step = env.step(action)
print('Next time step:')
print(next_time_step)

Time step:
TimeStep(
{'step_type': array(0, dtype=int32),
 'reward': array(0., dtype=float32),
 'discount': array(1., dtype=float32),
 'observation': array([-0.00907558,  0.02627698, -0.01019297,  0.04808202], dtype=float32)})
Next time step:
TimeStep(
{'step_type': array(1, dtype=int32),
 'reward': array(1., dtype=float32),
 'discount': array(1., dtype=float32),
 'observation': array([-0.00855004,  0.2215436 , -0.00923133, -0.24779937], dtype=float32)})

Usually we create two environments: one for training and one for evaluation. Most environments are written in pure python, but they can be easily converted to TensorFlow using the TFPyEnvironment wrapper. The original environment's API uses numpy arrays, the TFPyEnvironment converts these to/from Tensors for you to more easily interact with TensorFlow policies and agents.

train_py_env = suite_gym.load(env_name)
eval_py_env = suite_gym.load(env_name)

train_env = tf_py_environment.TFPyEnvironment(train_py_env)
eval_env = tf_py_environment.TFPyEnvironment(eval_py_env)

Agent

The algorithm that we use to solve an RL problem is represented as an Agent. In addition to the REINFORCE agent, TF-Agents provides standard implementations of a variety of Agents such as DQN, DDPG, TD3, PPO and SAC.

To create a REINFORCE Agent, we first need an Actor Network that can learn to predict the action given an observation from the environment.

We can easily create an Actor Network using the specs of the observations and actions. We can specify the layers in the network which, in this example, is the fc_layer_params argument set to a tuple of ints representing the sizes of each hidden layer (see the Hyperparameters section above).

actor_net = actor_distribution_network.ActorDistributionNetwork(
    train_env.observation_spec(),
    train_env.action_spec(),
    fc_layer_params=fc_layer_params)

We also need an optimizer to train the network we just created, and a train_step_counter variable to keep track of how many times the network was updated.

optimizer = tf.keras.optimizers.Adam(learning_rate=learning_rate)

train_step_counter = tf.Variable(0)

tf_agent = reinforce_agent.ReinforceAgent(
    train_env.time_step_spec(),
    train_env.action_spec(),
    actor_network=actor_net,
    optimizer=optimizer,
    normalize_returns=True,
    train_step_counter=train_step_counter)
tf_agent.initialize()

Policies

In TF-Agents, policies represent the standard notion of policies in RL: given a time_step produce an action or a distribution over actions. The main method is policy_step = policy.action(time_step) where policy_step is a named tuple PolicyStep(action, state, info). The policy_step.action is the action to be applied to the environment, state represents the state for stateful (RNN) policies and info may contain auxiliary information such as log probabilities of the actions.

Agents contain two policies: the main policy that is used for evaluation/deployment (agent.policy) and another policy that is used for data collection (agent.collect_policy).

eval_policy = tf_agent.policy
collect_policy = tf_agent.collect_policy

Metrics and Evaluation

The most common metric used to evaluate a policy is the average return. The return is the sum of rewards obtained while running a policy in an environment for an episode, and we usually average this over a few episodes. We can compute the average return metric as follows.

def compute_avg_return(environment, policy, num_episodes=10):

  total_return = 0.0
  for _ in range(num_episodes):

    time_step = environment.reset()
    episode_return = 0.0

    while not time_step.is_last():
      action_step = policy.action(time_step)
      time_step = environment.step(action_step.action)
      episode_return += time_step.reward
    total_return += episode_return

  avg_return = total_return / num_episodes
  return avg_return.numpy()[0]


# Please also see the metrics module for standard implementations of different
# metrics.

Replay Buffer

In order to keep track of the data collected from the environment, we will use Reverb, an efficient, extensible, and easy-to-use replay system by Deepmind. It stores experience data when we collect trajectories and is consumed during training.

This replay buffer is constructed using specs describing the tensors that are to be stored, which can be obtained from the agent using tf_agent.collect_data_spec.

table_name = 'uniform_table'
replay_buffer_signature = tensor_spec.from_spec(
      tf_agent.collect_data_spec)
replay_buffer_signature = tensor_spec.add_outer_dim(
      replay_buffer_signature)
table = reverb.Table(
    table_name,
    max_size=replay_buffer_capacity,
    sampler=reverb.selectors.Uniform(),
    remover=reverb.selectors.Fifo(),
    rate_limiter=reverb.rate_limiters.MinSize(1),
    signature=replay_buffer_signature)

reverb_server = reverb.Server([table])

replay_buffer = reverb_replay_buffer.ReverbReplayBuffer(
    tf_agent.collect_data_spec,
    table_name=table_name,
    sequence_length=None,
    local_server=reverb_server)

rb_observer = reverb_utils.ReverbAddEpisodeObserver(
    replay_buffer.py_client,
    table_name,
    replay_buffer_capacity
)

[reverb/cc/platform/tfrecord_checkpointer.cc:162]  Initializing TFRecordCheckpointer in /tmpfs/tmp/tmpkagdqs1n.
[reverb/cc/platform/tfrecord_checkpointer.cc:565] Loading latest checkpoint from /tmpfs/tmp/tmpkagdqs1n
[reverb/cc/platform/default/server.cc:71] Started replay server on port 41705

For most agents, the collect_data_spec is a Trajectory named tuple containing the observation, action, reward etc.

Data Collection

As REINFORCE learns from whole episodes, we define a function to collect an episode using the given data collection policy and save the data (observations, actions, rewards etc.) as trajectories in the replay buffer. Here we are using 'PyDriver' to run the experience collecting loop. You can learn more about TF Agents driver in our drivers tutorial.

def collect_episode(environment, policy, num_episodes):

  driver = py_driver.PyDriver(
    environment,
    py_tf_eager_policy.PyTFEagerPolicy(
      policy, use_tf_function=True),
    [rb_observer],
    max_episodes=num_episodes)
  initial_time_step = environment.reset()
  driver.run(initial_time_step)

Training the agent

The training loop involves both collecting data from the environment and optimizing the agent's networks. Along the way, we will occasionally evaluate the agent's policy to see how we are doing.

The following will take ~3 minutes to run.

try:
  %%time
except:
  pass

# (Optional) Optimize by wrapping some of the code in a graph using TF function.
tf_agent.train = common.function(tf_agent.train)

# Reset the train step
tf_agent.train_step_counter.assign(0)

# Evaluate the agent's policy once before training.
avg_return = compute_avg_return(eval_env, tf_agent.policy, num_eval_episodes)
returns = [avg_return]

for _ in range(num_iterations):

  # Collect a few episodes using collect_policy and save to the replay buffer.
  collect_episode(
      train_py_env, tf_agent.collect_policy, collect_episodes_per_iteration)

  # Use data from the buffer and update the agent's network.
  iterator = iter(replay_buffer.as_dataset(sample_batch_size=1))
  trajectories, _ = next(iterator)
  train_loss = tf_agent.train(experience=trajectories)

  replay_buffer.clear()

  step = tf_agent.train_step_counter.numpy()

  if step % log_interval == 0:
    print('step = {0}: loss = {1}'.format(step, train_loss.loss))

  if step % eval_interval == 0:
    avg_return = compute_avg_return(eval_env, tf_agent.policy, num_eval_episodes)
    print('step = {0}: Average Return = {1}'.format(step, avg_return))
    returns.append(avg_return)

[reverb/cc/client.cc:165] Sampler and server are owned by the same process (47292) so Table uniform_table is accessed directly without gRPC.
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1703253913.189247   48625 device_compiler.h:186] Compiled cluster using XLA!  This line is logged at most once for the lifetime of the process.
[reverb/cc/client.cc:165] Sampler and server are owned by the same process (47292) so Table uniform_table is accessed directly without gRPC.
[reverb/cc/client.cc:165] Sampler and server are owned by the same process (47292) so Table uniform_table is accessed directly without gRPC.
[reverb/cc/client.cc:165] Sampler and server are owned by the same process (47292) so Table uniform_table is accessed directly without gRPC.
[reverb/cc/client.cc:165] Sampler and server are owned by the same process (47292) so Table uniform_table is accessed directly without gRPC.
step = 25: loss = 1.8318419456481934
[reverb/cc/client.cc:165] Sampler and server are owned by the same process (47292) so Table uniform_table is accessed directly without gRPC.
step = 50: loss = 0.0070743560791015625
step = 50: Average Return = 9.800000190734863
[reverb/cc/client.cc:165] Sampler and server are owned by the same process (47292) so Table uniform_table is accessed directly without gRPC.
step = 75: loss = 1.1006038188934326
step = 100: loss = 0.5719594955444336
step = 100: Average Return = 50.29999923706055
step = 125: loss = -1.2458715438842773
[reverb/cc/client.cc:165] Sampler and server are owned by the same process (47292) so Table uniform_table is accessed directly without gRPC.
step = 150: loss = 1.9363441467285156
step = 150: Average Return = 98.30000305175781
step = 175: loss = 0.8784818649291992
step = 200: loss = 1.9726766347885132
step = 200: Average Return = 143.6999969482422
step = 225: loss = 2.316105842590332
step = 250: loss = 2.5175299644470215
step = 250: Average Return = 191.5

Visualization

Plots

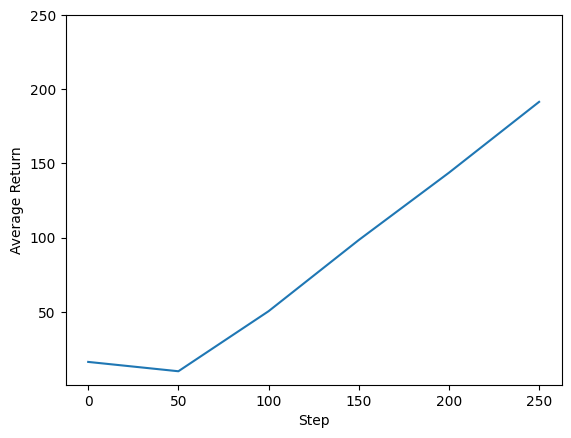

We can plot return vs global steps to see the performance of our agent. In Cartpole-v0, the environment gives a reward of +1 for every time step the pole stays up, and since the maximum number of steps is 200, the maximum possible return is also 200.
