Image Classification with TensorFlow Hub

In this colab, you'll try multiple image classification models from TensorFlow Hub and decide which one is best for your use case.

Because TF Hub encourages a consistent input convention for models that operate on images, it's easy to experiment with different architectures to find the one that best fits your needs.

View on TensorFlow.org View on GitHub Download notebook See TF Hub models
import tensorflow as tf
import tensorflow_hub as hub

import requests
from PIL import Image
from io import BytesIO

import matplotlib.pyplot as plt
import numpy as np
2021-07-29 12:52:58.592038: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0

Helper functions for loading image (hidden)

Select an Image Classification Model. After that, some internal variables are set and the labels file is downloaded and prepared for use.

There are some technical differences between the models, like different input size, model size, accuracy, and inference time. Here you can change the model you are using until you find the one most suitable for your use case.

The handle (url) of the model is printed for your convenience. More documentation about each model is available there.

Select an Image Classification model

Selected model: efficientnetv2-s : https://hub.tensorflow.google.cn/google/imagenet/efficientnet_v2_imagenet1k_s/classification/2
Images will be converted to 384x384
Downloading data from https://storage.googleapis.com/download.tensorflow.org/data/ImageNetLabels.txt
16384/10484 [==============================================] - 0s 0us/step

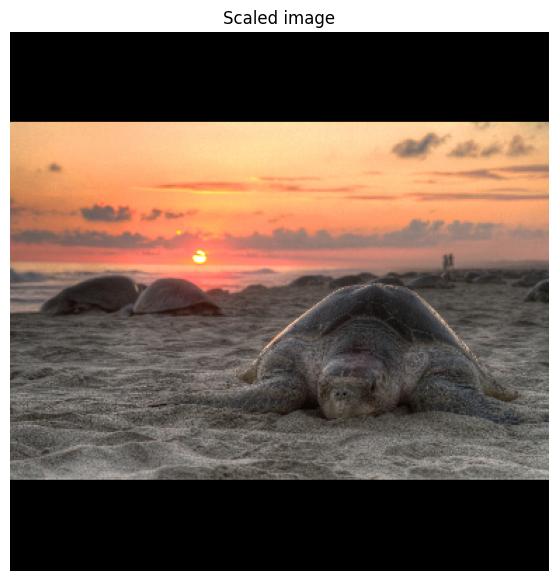

You can select one of the images below, or use your own image. Just remember that the input sizes for the models vary and some of them use a dynamic input size (enabling inference on the unscaled image). Given that, the method load_image will already rescale the image to the expected format.

Select an Input Image

2021-07-29 12:53:02.246339: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcuda.so.1
2021-07-29 12:53:02.878949: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:53:02.879851: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1733] Found device 0 with properties:
pciBusID: 0000:00:05.0 name: Tesla V100-SXM2-16GB computeCapability: 7.0
coreClock: 1.53GHz coreCount: 80 deviceMemorySize: 15.78GiB deviceMemoryBandwidth: 836.37GiB/s
2021-07-29 12:53:02.879892: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
2021-07-29 12:53:02.883152: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublas.so.11
2021-07-29 12:53:02.883262: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublasLt.so.11
2021-07-29 12:53:02.884337: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcufft.so.10
2021-07-29 12:53:02.884648: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcurand.so.10
2021-07-29 12:53:02.885650: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcusolver.so.11
2021-07-29 12:53:02.886587: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcusparse.so.11
2021-07-29 12:53:02.886766: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudnn.so.8
2021-07-29 12:53:02.886875: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:53:02.887792: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:53:02.888605: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1871] Adding visible gpu devices: 0
2021-07-29 12:53:02.889248: I tensorflow/core/platform/cpu_feature_guard.cc:142] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations:  AVX2 AVX512F FMA
To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.
2021-07-29 12:53:02.889852: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:53:02.890691: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1733] Found device 0 with properties:
pciBusID: 0000:00:05.0 name: Tesla V100-SXM2-16GB computeCapability: 7.0
coreClock: 1.53GHz coreCount: 80 deviceMemorySize: 15.78GiB deviceMemoryBandwidth: 836.37GiB/s
2021-07-29 12:53:02.890774: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:53:02.891670: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:53:02.892521: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1871] Adding visible gpu devices: 0
2021-07-29 12:53:02.892565: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
2021-07-29 12:53:03.486317: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1258] Device interconnect StreamExecutor with strength 1 edge matrix:
2021-07-29 12:53:03.486358: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1264]      0
2021-07-29 12:53:03.486366: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1277] 0:   N
2021-07-29 12:53:03.486614: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:53:03.487664: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:53:03.488557: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2021-07-29 12:53:03.489385: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1418] Created TensorFlow device (/job:localhost/replica:0/task:0/device:GPU:0 with 14646 MB memory) -> physical GPU (device: 0, name: Tesla V100-SXM2-16GB, pci bus id: 0000:00:05.0, compute capability: 7.0)

png

Now that the model was chosen, loading it with TensorFlow Hub is simple.

This also calls the model with a random input as a "warmup" run. Subsequent calls are often much faster, and you can compare this with the latency below.

classifier = hub.load(model_handle)

input_shape = image.shape
warmup_input = tf.random.uniform(input_shape, 0, 1.0)
%time warmup_logits = classifier(warmup_input).numpy()
2021-07-29 12:53:15.977446: I tensorflow/compiler/mlir/mlir_graph_optimization_pass.cc:176] None of the MLIR Optimization Passes are enabled (registered 2)
2021-07-29 12:53:16.067594: I tensorflow/core/platform/profile_utils/cpu_utils.cc:114] CPU Frequency: 2000179999 Hz
2021-07-29 12:53:16.869702: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudnn.so.8
2021-07-29 12:53:17.315440: I tensorflow/stream_executor/cuda/cuda_dnn.cc:359] Loaded cuDNN version 8100
2021-07-29 12:53:17.931042: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublas.so.11
2021-07-29 12:53:18.276648: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcublasLt.so.11
CPU times: user 2.31 s, sys: 439 ms, total: 2.75 s
Wall time: 2.8 s

Everything is ready for inference. Here you can see the top 5 results from the model for the selected image.

# Run model on image
%time probabilities = tf.nn.softmax(classifier(image)).numpy()

top_5 = tf.argsort(probabilities, axis=-1, direction="DESCENDING")[0][:5].numpy()
np_classes = np.array(classes)

# Some models include an additional 'background' class in the predictions, so
# we must account for this when reading the class labels.
includes_background_class = probabilities.shape[1] == 1001

for i, item in enumerate(top_5):
  class_index = item if not includes_background_class else item - 1
  line = f'({i+1}) {class_index:4} - {classes[class_index]}: {probabilities[0][top_5][i]}'
  print(line)

show_image(image, '')
CPU times: user 20.1 ms, sys: 936 µs, total: 21 ms
Wall time: 19.6 ms
(1)   34 - leatherback turtle: 0.7747751474380493
(2)   33 - loggerhead: 0.10644769668579102
(3)   36 - terrapin: 0.0058748358860611916
(4)  147 - grey whale: 0.0025945566594600677
(5)   35 - mud turtle: 0.0025599489454180002

png

Learn More

If you want to learn more and try how to do Transfer Learning with these models you can try this tutorial: Transfer Learning for Image classification

If you want to check on more image models you can check them out on hub.tensorflow.google.cn
